IPG LightWELD Sales

LightWELD is FASTER and Easier than Traditional MIG & TIG Welding
Experienced MIG and TIG users benefit from the more rapid and flexible processing capabilities of LightWELD:
  • Up to 4X faster than TIG
  • Easy to learn and operate with highest process consistency
  • High quality welding of thick, thin and reflective metals without distortion, deformation, undercut or burn-through
  • Welding of dissimilar metal parts of different thicknesses
  • Dramatically low heat input and minimized heat affected zone
  • Minimal part setup and post-processing grinding or polishing
  • Increased productivity with no need for machining or straightening deformed parts

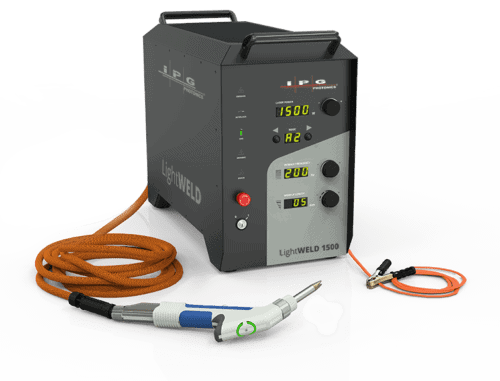

The LightWeld 1500 enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG without distortion, undercut or burn-through. The heat affected zone is dramatically minimized, as is the need for traditional post-processing grinding or polishing for increased productivity, less scrap and lower cost-per-part.



The FIRST Truly Portable Laser Welding System
  • The smallest and lightest laser welding system available
  • Fits on welding cart reducing floor space and increasing portability
  • Robust steel construction for workshop durability and remote location transport
  • Built-in automatic air cooling
  • Integrated programmable control of welding gas and pre-process purging



Simple Installation and Operation

  • 220 V, 20 A, single phase power
  • Standard welding gas bottle
  • Compact, portable welding unit:
    • (LxWxH) 641×316 x534 mm, 53 kg (25.2″x12.4″x21″, 118 lbs)
  • No consumable electrodes required
  • Wire-feed integration option for gap bridging and welds with filler wire





Environmentally Friendly Welding

  • Low electrical power consumption
  • Clean operation and low acoustic noise
  • Significant reduction in  welding  consumables, clean up and disposal





Schedule a Live Demo

Experience for yourself what seasoned welders are calling the most revolutionary welding system available.  Click the button to schedule your own personal live demo with an IPG expert who will show you:

  • How to Get Started
  • An Overview of the Controls, Connections and Welding Gun
  • A Live Welding Demo of Thick, Thin, Reflective and Dissimilar Metals
  • Horizontal, Vertical and Upside Down Welding
  • Stored and Saved Modes
  • Live Q&A for Your Specific Questions





process-parameters
handheld-laser-welder-gun sample2_2

Welding Service

Serra Laser is equipped with the latest in welding technology. Our IPG LightWELD produces high quality welds of thick, thin and reflective metals without distortion, deformation, undercut or burn-through. Call or Email today with details of your next project!



  • Full weld penetration on material 0.157″ and under
  • Copper welding up to 0.040″
  • Dissimilar material welding
  • Dramatically low heat input and minimized heat affected zone
  • Minimal part setup and post-processing grinding or polishing
