PRECISION

Laser, Waterjet, Tube and Plasma Cutting

2D Laser Cutting

  • High Speed Flat Cutting
  • Large Bed Size 6.5′ x 13′
  • Brass, copper and fine metal cutting
  • Thick laser cut metal & plastic to 1″
  • Thin laser cut metal & plastic to .005″
  • Small precision parts
  • Tolerance can be held to ±0.001”
  • 11 Laser Cutters for Fast Turnaround

About Us Image 2

3D Laser Cutting

  • Stamped, Formed, Hoffman boxes and Spun Parts
  • Odd Shaped and Large Parts
  • Up to 1/2 inch thick
  • Precision cut to .004
  • Catia & Solidworks software for programming
  • Reverse engineering available

Image Gallery 11

Bending & Forming

  • Steel and Stainless Steel up to .250in
  • Aluminum, Copper and Brass up to .375
  • 26 1/2 inch Maximum Width
  • Prototype to Production
  • Precision Back Gauge for High Tolerance Parts

CNC Vertical Milling

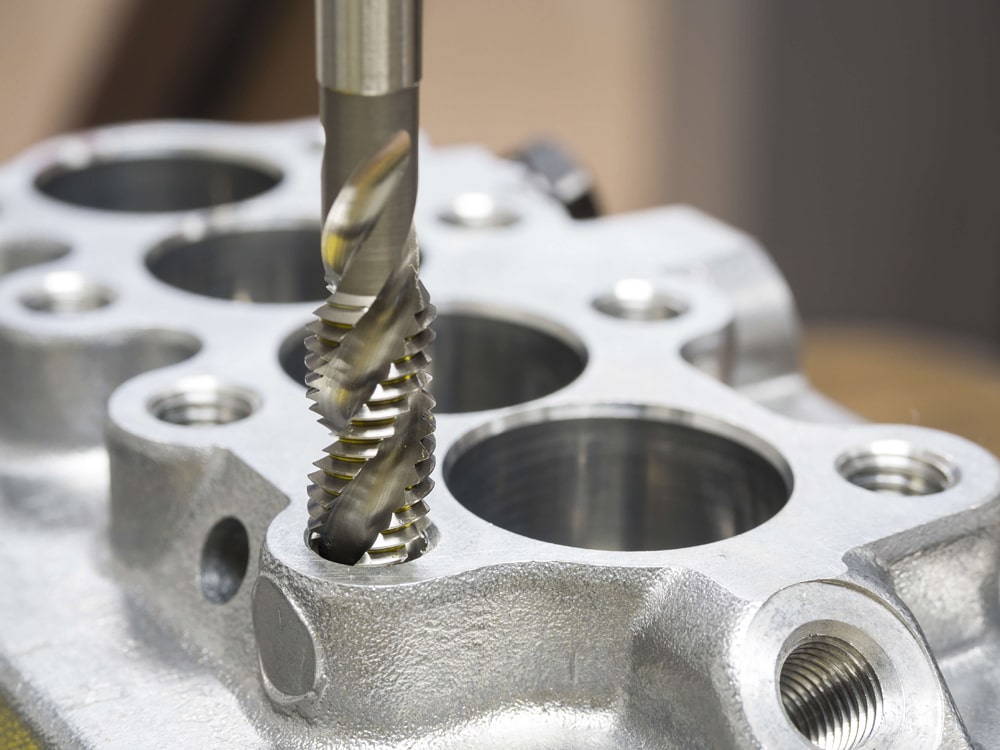

  • Tapping and countersinking of laser cut parts
  • Table size: 40 inches x 20 inches
  • Max Weight; 1100 pounds
  • 12,000 rpm precision spindle
  • 24 tool changing station to maximize production speed

CNC Milling Services Image 2

Laser Welding

  • Full weld penetration on material 0.157″ and under
  • Copper welding up to 0.080″
  • Aluminum 3 & 5 Series up to .250″
  • Aluminum 6 Series up to .187″
  • Steel up to .250″
  • Titanium & Nickel Alloy up to .200″
  • Dissimilar material welding
  • Dramatically low heat input and minimized heat affected zone
  • Minimal part setup and post-processing grinding or polishing

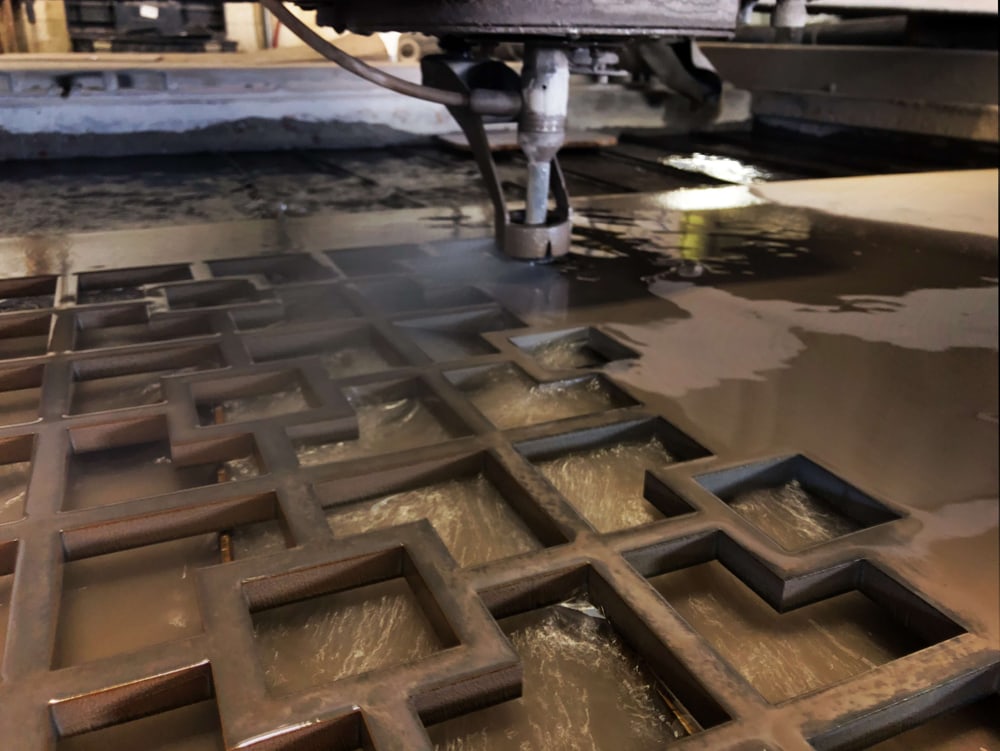

2D & 3D Waterjet Cutting

  • Waterjet parts Cutting to .015″ to 8.0″ material thickness range
  • Waterjet cutting tables 75″ x 156″ working area
  • Bevel Cutting
  • Depending on Material up to 57 degrees for 3D Cutting

Waterjet Cutting Services Image

6 Axis Tube Cutting

  • Up to 26′ long tubes
  • Up to 10 inch OD round tube
  • Structural shapes that fit into a 8 inch square
  • Up to 1/2 inch wall thickness
  • Tapping Option Available

Image Gallery 4

Hi-Definition Plasma Cutting

  • 10′ x 20′ Bed Size
  • Up to 2 1/2 inch thick plate

Edge Rounding & Deburring

  • Up to 43.4 inch Part Width
  • Rounding metal parts allows them to be properly coated and painted
  • This solution is ideal for creating the best possible finish on laser-cut or machined metal parts
  • Modern edge rounding tools can round the edges of a stainless steel part without marring its surface or tearing off any protective sheeting.

Inspection & Reverse Engineering

  • InspecVision Planar 2D Machine for inspecting and Reverse Engineering parts
  • Better measurement accuracy
  • Greater reliability
  • First Article Inspections
  • Batch Inspections
  • Random Inspections
  • Faster processing speeds
  • Broader flexibility and versatility
  • Easier usage requirements

Quotes within an hour 714.680.6211

Instant Quote 24/7

Delivery and Pick-Up is available, 24 Hour Turnaround, National Delivery. On Time Delivery, meeting and exceeding your expectations. Serra Laser & Waterjet has two locations in Southern California. Anaheim, CA and Sun Valley, CA
